Refrigerant air dryer
PD Series

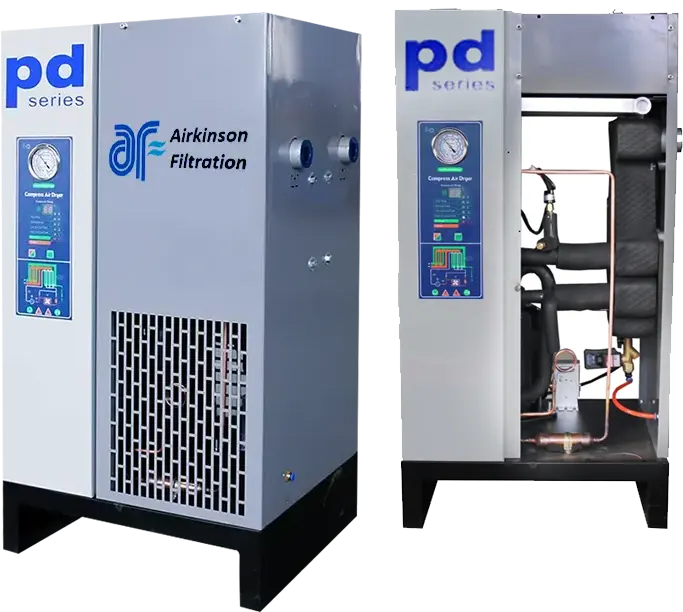

PD series refrigerant air dryer is a new type of energy saving refrigerated dryer. It’s unique high efficiency heat transfer aluminium alloy and low pressure drop with 3 in 1 combination function of air to air heat exchange, refrigerant to air heat exchange and demister type moisture separation.

The components of PD series, from refrigerant to materials of construction, had been selected with maximum respect for the environment and their ability to be recycled.

Accessories:

Well know brand refrigerant compressor like Panasonic, Copeland & Danfoss to ensure reliablity of the equipment

Enviroment friendly refrigerant R134a, R410a & R407C

Mahr axial cooling fan with large cooling air volume, low noise and stable operation

3 in 1 intergrated high efficiency aluminium alloy heat exchanger

Full vacuum brazed microchannel condenser with large cooling surface

Control system : SCM/PLC controller programming. Support remote start & stop, remote operation faulty alarm , 485 communication, etc (Optional)

Oil filled manometer

Electronic expansion valve & hot gas by-pass valve with accurated control capacity

JORC electronic timer drain. Mechanical & zero air loss drain as optional

Unit well protected with high and low pressure protection switch. Phase sequence protection for 3 phase unit

Technical Specification:

Nominal operating condition base on air inlet pressure 7 barg, air inlet temperature 42°C and ambient 32°C

Model	Flow rate		Port Size BSP - P	Refrigerant	Voltage	Power	Dimension			Weight
Model	Nm³/min	Scfm	Port Size BSP - P	Type	220V/1 Ph/50Hz	kw	H	D	W	kgs
PD-10S	1.55	55	G 1”	R134a		0.50	780	480	450	55
PD-20S	2.55	90	G 1”	R134a		0.66	990	590	500	65
PD-30A	3.8	135	G 1”	R410a		0.90	990	520	440	75
PD-50A	6.5	240	G 1 ½”	R410a		1.30	990	520	440	120
PD-75A	10.5	380	G 2”	R410a		2.10	1230	690	470	140
PD-100A	13.5	496	G 2”	R410a		2.30	1230	690	470	160
PD-120A	17.0	600	G 2 ½”	R410a		2.80	1440	1170	550	180
PD-150A	21.5	760	G 2 ½”	R407C	400V/3 Ph/50Hz	3.00	1440	1170	550	200
PD-180A	25.0	901	DN 80	R407C		3.20	1510	1170	600	260
PD-200A	28.5	1006	DN 80	R407C		4.90	1600	1400	740	230
PD-250A	32.0	1190	DN 80	R407C		4.90	1600	1400	740	250
PD-300A	37.0	1306	DN 100	R407C		7.80	1740	1700	750	380
PD-350A	41.5	1465	DN 100	R407C		7.80	1740	1700	850	600
PD-400A	45.30	1600	DN 100	R407C		5.80	1580	1600	750	450
PD-500A	55.20	1950	DN 100	R407C		6.50	1750	1600	1000	550
PD-600A	65.11	2300	DN 125	R407C		7.50	1750	1600	1000	660
PD-700A	76.44	2700	DN 125	R407C		8.80	1750	1750	1000	700
PD-800A	90.00	3178	DN 125	R407C		10.20	1750	1750	1000	720
PD-1000A	100.00	3532	DN 150	R407C		13.50	1850	2000	1200	760
PD-1200A	120.00	4238	DN 150	R407C		15.80	1850	2000	1200	760

Capacity Correction Factor:

Air Inlet Pressure (Barg)
Barg	4	5	7	8	10	12	14
Factor	0.77	0.85	1.00	1.06	1.15	1.21	1.25

Ambient Temperature (°C)
Temperature	≤ 25	32	35	40	45	50
Factor	1.05	1.00	0.95	0.80	0.65	0.45

Air Inlet Temperature (°C)
Temperature	≤ 30	35	40	42	45	50
Factor	1.15	1.08	1.04	1.00	0.85	0.72

Dew Point Temperature (°C)
Temperature	3	5	7	10
Factor	1.00	1.08	1.15	1.20

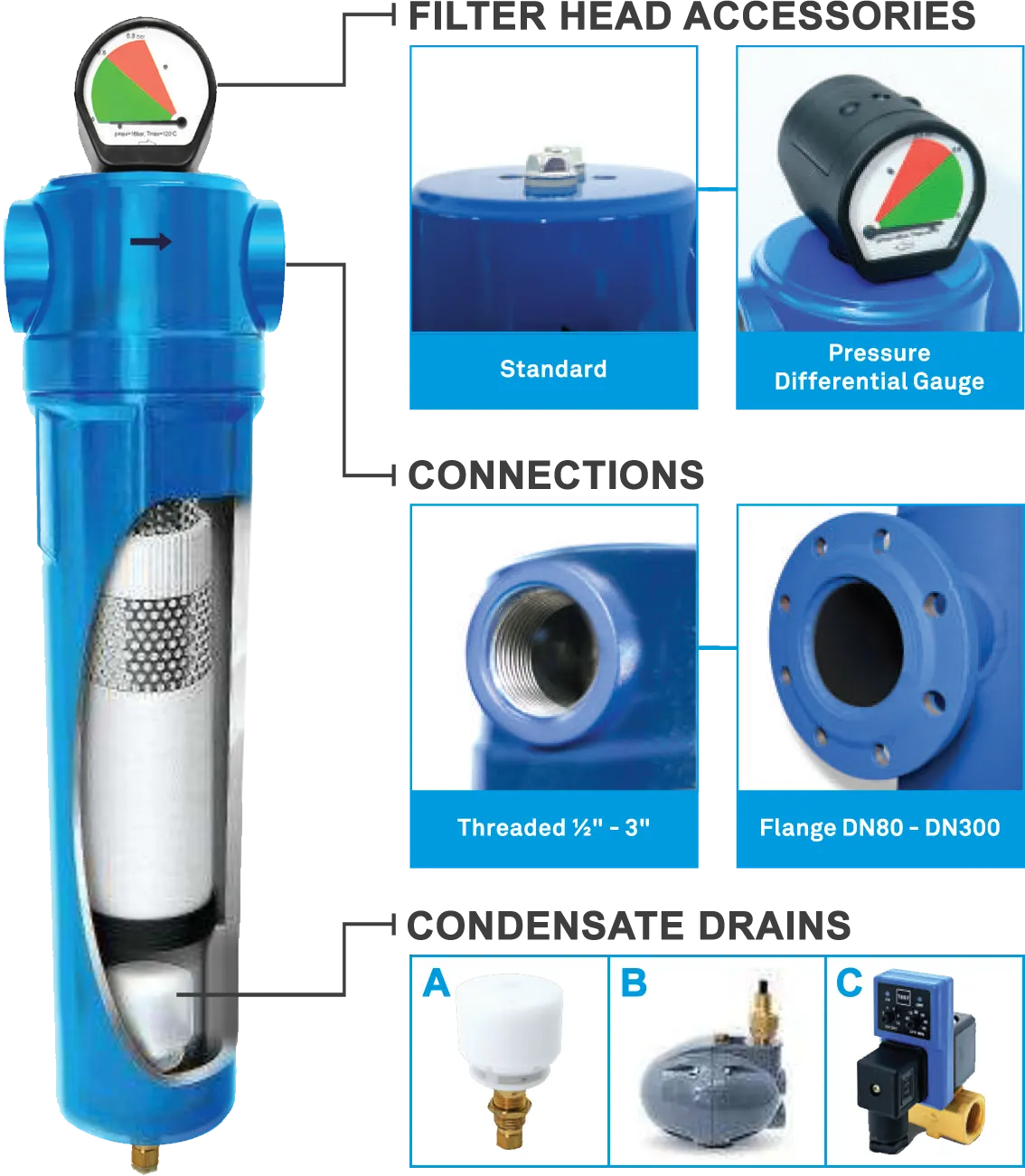

Compressor air filter housing AF Series

Compressed air systems are widely used for almost every industrial and have been associated to one of the most crucial power source. The compressed air produced by the compressor usually contains dirt, water and other unwanted particles that can substantially jeopardize your production process resulting to an extremely higher maintenance cost.

Specification:

Model	Nominal flow rate		Port size BSP - P	Weight (kgs)	Element Code
Model	Nm³/min	Scfm	Port size BSP - P	Weight (kgs)	Element Code
AF 0100	1.00	35	G ½”	0.9	E0100
AF 0135	1.35	48	G ½”	1.0	E0135
AF 0205	2.05	72	G ¾”	1.3	E0205
AF 0395	3.95	140	G 1”	2.6	E0395
AF 0720	7.20	255	G 1 ½”	2.8	E0720
AF 0905	9.05	320	G 1 ½”	3.6	E0905
AF 1495	14.95	528	G 2”	6.2	E1495
AF 1985	19.85	700	G 2”	7.2	E1985
AF 2600	26.00	918	G 2 ½”	11.2	E2600
AF 3750	37.50	1325	G 3”	20.0	E3750
AFV 4600	46.00	1625	DN 80	80.0	E4600

Standard supply:

Internal drain kits (IAD 416) AF0100 - AF2600
Differential pressure gauge (DIG 04) excluded
External drain assembly (EMD-04) AFV 4600 – AVF 7800

Accessories:

Illustration	Description	Ordering Code
	Differential pressure gauge (DPG)	DIG 04
	Auto drain kits for AF0100 ~ AF2600 (With manual release valve)	IAD 416
	Auto drain kits for AF3750 ~ AFV7800	EMD 04
